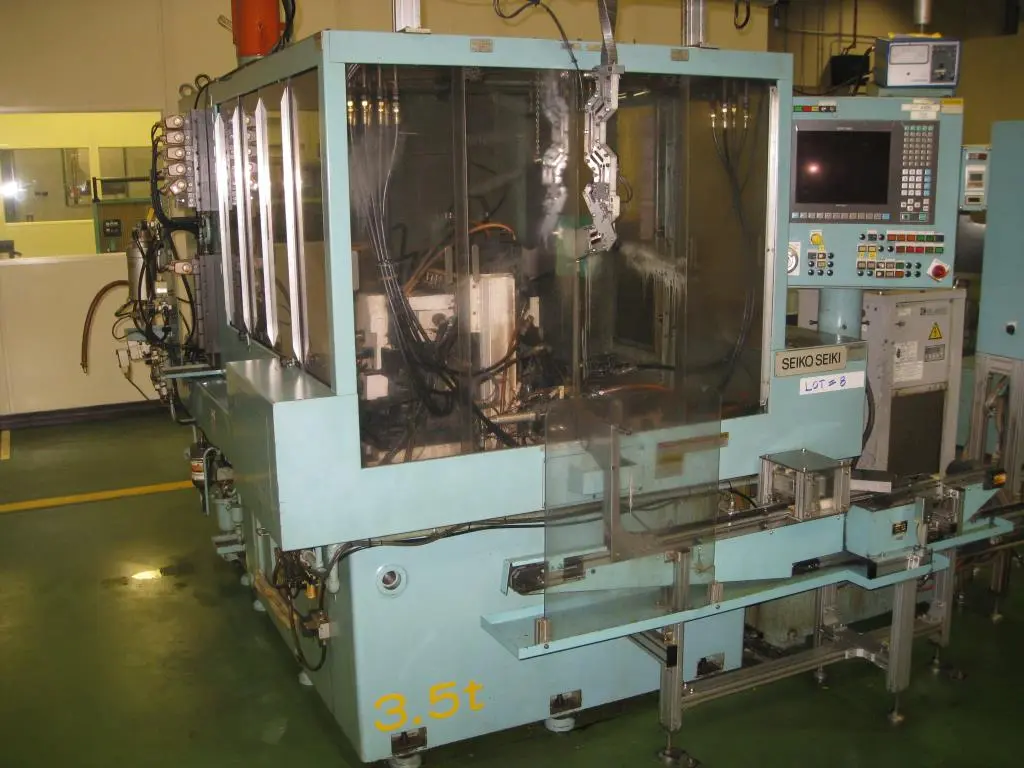

SEIKO SEIKI SCG15 CNC EXTERNAL GRINDER

SEIKO SEIKI SCG 15 CNC EXTERNAL GRINDER
S/N 281 Year: 1999

STANDARD SPECIFICATIONS
Distance between centers……………………………..….. 5.90”
Center height from the floor level...………………………..39.4”
Swing over table…………………………………………… 9.4”

Grinding wheel head:
Maximum stroke…………………………………………... 4.7”
In feed rate…………………………………………………. 0.000004”– 20”/min
Manual feed pulse handle (per one rotation)……………… 0.00039” x 0.0394”
Manual feed pulse handle (per one scale)………………… 0.00039” x 0.0394”
Switcher of x 1, x 10, x 50 magnification

Grinding wheel:
Size of grinding……………………………………………. F 14” x 1.5” x 5”
Size of grinding wheel…………………………………….. 16”x 1.3” x 5”
Peripheral speed…………………………………………… 1.2”(1.8”)/sec

Table:
Right and left adjustment of table…………………………0.8”
Movabletable/table transition amount…………………..1.6”

Tail stock:
Center……………………………………………………… MT No.1
Stroke……………………………………………………… 0.8”, 2”, 3.1”

Dresser system:
Parallel profiling dresser.
Traverse type rotary dresser.
Formed rotary dresser.

Motors others:
For grinding wheel spindle………………………………..2.011 HP
For hydraulics…………………………………………….. 1.0057 HP
Hydraulic tank……………………………………………. 65 /
Lubrication tank for grinding spindle……………………. 30 /
Lubrication tank for slide way……………………………5.5 /
Coolant tank……………………………………………… 200 /
Machine weight………………………………………….. 4409 lbs.

EQUIPMENT FEATURES
GCNC 5000 CNC Controls.
Rotary wheel dresser.
Attached electrical.
E9 Marposs gage.
This is the CNC fully automatic cylindrical grinder which performs the centerless grinding work by the M/G plain slide and the magnetic work head.

Specifications are deemed accurate, however, subject to verification or prior sale.
