Used 1942 GOULD & EBERHARDT 72HWD | HOBBERS, SPLINE

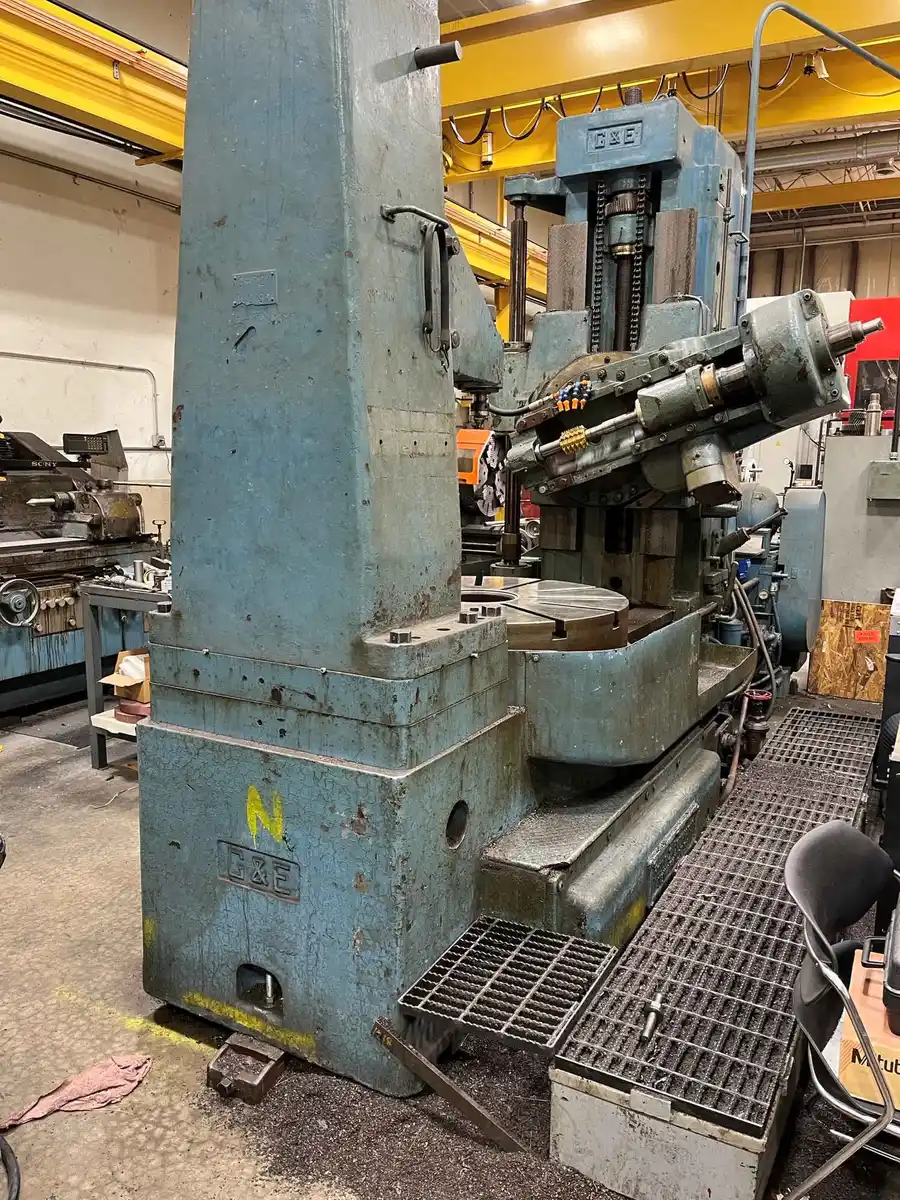

                                                                                              GOULD & EBERHARDT 72HWD VERTICAL GEAR HOBBER
                                                                                                               S/N 2714A10       YEAR: 1942

STANDARD SPECIFICATIONS
Max. DP in Steel……………………………………………1. DP
Face Capacity……………………………………………….30"
Max. Diameter Spur Gear w/ Support…………………….. 48"
Max. Diameter Spur Gear w/o Support…………………….80"
Max. Diameter Helical Gear w/o Sup (45 Degrees)………..78"
Min Centers Work & Hob Arbors…………………………..3"
Max. Diameter Hob…………………………………………10.75"
Diameter of Work Table…………………………………….40"
Diameter of Index Worm Gear……………………………...48"
Hob Speed Ranges…………………………………………..6 - 100 RPM
Feed Range………………………………………………… .03 - .200"
Main Motor…………………………………………………..15 HP
Approx. Dimensions…………………………………………207" L x 90" W
Approx. Weight……………………………………………...38,000 LBS

EQUIPPED WITH
Heavy Duty Worm Drive Hob Head
Tailstock
Differential
Coolant Pump
Hob Arbors
Change Gears

Specifications are deemed accurate, however, subject to verification or prior sale.

All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
