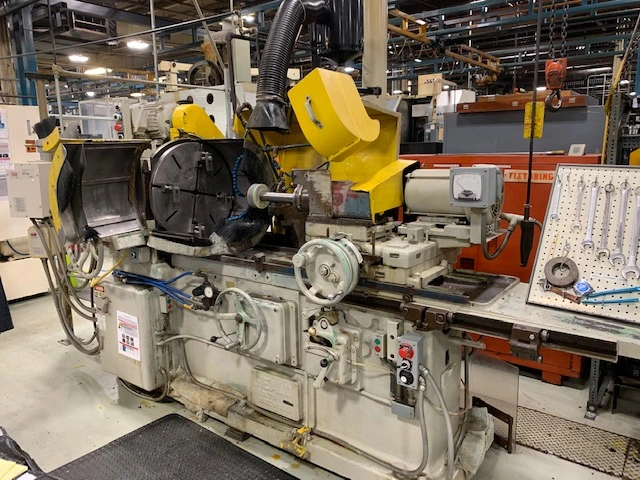

74 HEALD INTERNAL GRINDER

74 HEALD INTERNAL GRINDER

S/N 25537

STANDARD SPECIFICATIONS

CAPACITIES:
Swing over table (straight work)........................ 24
Maximum diameter of hole that can be ground.... 20
Grinding stroke................................................ 15
Taper swivel on work head................... 60inc. angle
Center of chuck spindle from floor...................... 50
Diameter of work head spindle flange................ 12
Hole through work head spindle................ 1 11/16
Total table travel............................................. 18

SPEEDSANDFEEDS
Table speeds unlimited between....................... 0 to 18 ft. per min
Work head speeds adjustable from............. a-c 41-62-82-123RPM
Cross feed dial graduation represents.................................. .001
Power feed adjustment............................................. 1 to 6 teeth
Each ratchet tooth with coarse gears(standard).................. .0002
Each ratchet tooth with fine gears(optional).................... .000128

DRIVES
Pump motor.........................................................2 HP, ac - 1200RPM
Work head motor..1-1 1/2-2-3 Tapered HP, ac-600-900-1200-1800RPM
Wheel head motor........................................... 7 1/2 HP, ac-3600RPM

EQUIPMENTANDFEATURES
Red Head spindle.
All trip dogs.
Cross sliding work head.
Manual or hydraulic table.
All pick feeds.
Manual dresser.
Push button station.
