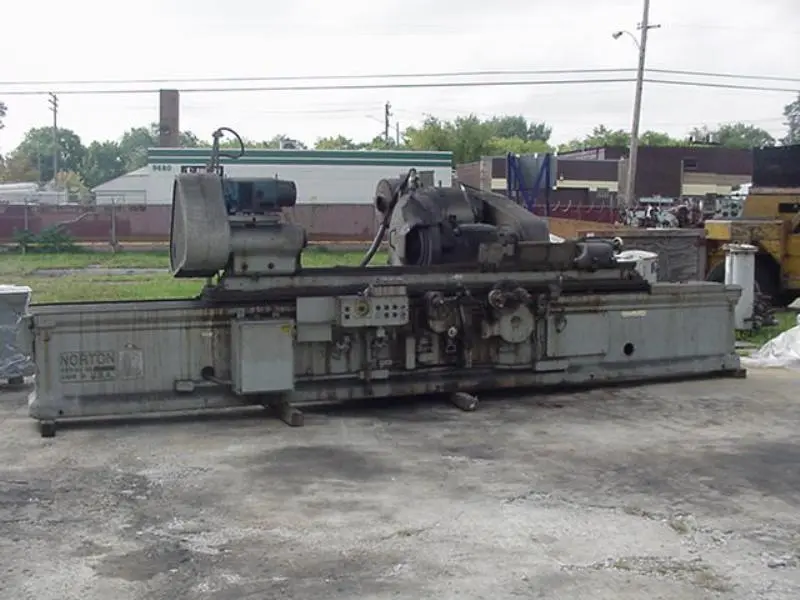

14 x 96 NORTON TYPE C PLAIN CYLINDRICAL GRINDER

14 x 96 NORTON TYPE C PLAIN CYLINDRICAL GRINDER
S/N 23958

STANDARD SPECIFICATIONS
Maximum diameter possible to grind with 30 wheel…………..14
Nominal lengths between centers……………………………….. 96
Coolant tank capacity in U.S. gallons…………………………… 50
Hydraulic reservoir capacity…………………………………….. 38 gallons
Lubrication reservoir capacity………………………………….… 6 quarts

GRINDING WHEELS
Maximum diameter and width………………………………….. 24 x 3 1/2x 12

SWIVEL ADJUSTMENT
Inches per foot on diameter – Machine length………………….. 96
- Adjustment…………………….… 1 1/2

MACHINE NOMINAL LENGTH
Net weight…………………………………………………….. 14,700
Domestic shipping weight……………………………………. 16,200
Export shipping weight……………………………………….. 18,500
Cubics – boxed for export…………………………………….. 675

TABLE SPEEDS
Hydraulic Traverse Machines: Length……………………… 96
No. of speeds……………… Infinite
Range……………………… 5 to 360
Mechanical Traverse Machines: Length…………………… 96
No. of speeds……………. Infinite
Range……………………. 3 to 144

EQUIPMENT FEATURES
Motorized head stock
Screw type tail stock
24 Diameter G.W.
Hydraulic table traverse
20 H.P. main spindle motor

Specifications are deemed accurate, however, subject to verification or prior sale.
