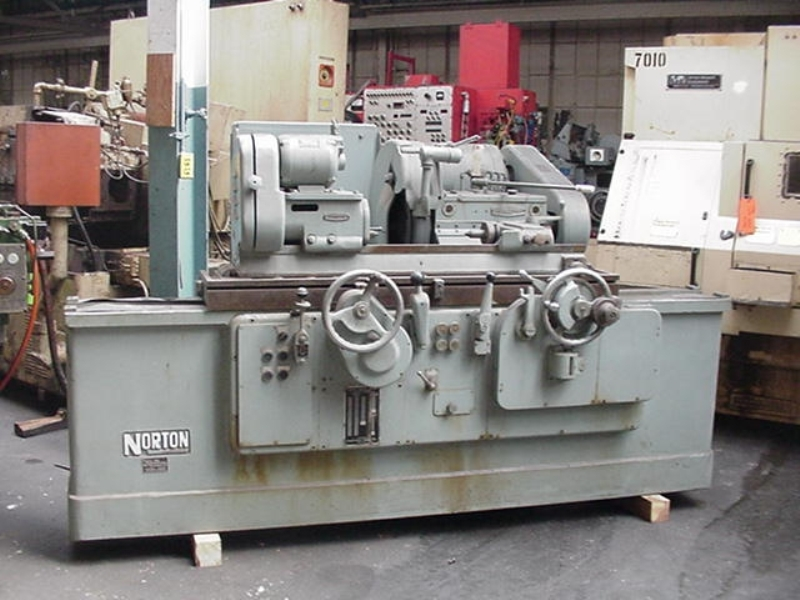

6 x 30 NORTON CTU PLAIN CYLINDRICAL GRINDER

6 x 30 NORTON CTU PLAIN CYLINDRICAL GRINDER

S/N 23119 Year:1949

STANDARD CATALOG SPECIFICATIONS
PRIVATE tc� \l 1 Maximum diameter work ground with24\ wheel, 6\ grinding wheelsMaximum diameters and widths.................. 24 x 3 x 12
Coolant tank capacity......................... 32 gallons
Coolant pump capacity......................... 21 gallons
Hydraulic oil reservoir capacity.............. 32 gallons
Lubricating oil reservoir capacity............ 3 gallons
Swivel table adjustment (in. perft. on dia.)
Machine length................................ 30
Machine taper................................. 3

MOTORS
Wheel drive..... 7 1/2 HP, 1800 RPM, constant speed AC
Work drive...... 1/2 HP, 1200 RPM, constant speed AC
or 1/2 HP, 690/2760 RPM, adjustable speed DC
Hydraulic and lubricating pump drive..... 3/4 HP, 1200 RPM
Constant speed AC
AC Motor speeds are for 60 Cycle, for 50 Cycle AC Speeds
will be 1500 and 1000 RPM

TABLE SPEEDS
Range of speeds (in. perm in.)................ 2 - 240
Number of speeds.............................. Infinite

EQUIPPED WITH
Head stock.
Tail stock.
Hand hydraulic table travel.
Hydraulics.
Electrics.
Timers.
Oscillating spindle for shoulder grinding.

Government surplus!

Net weight.................................... 6,600 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
