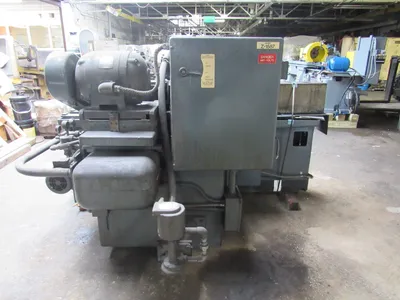

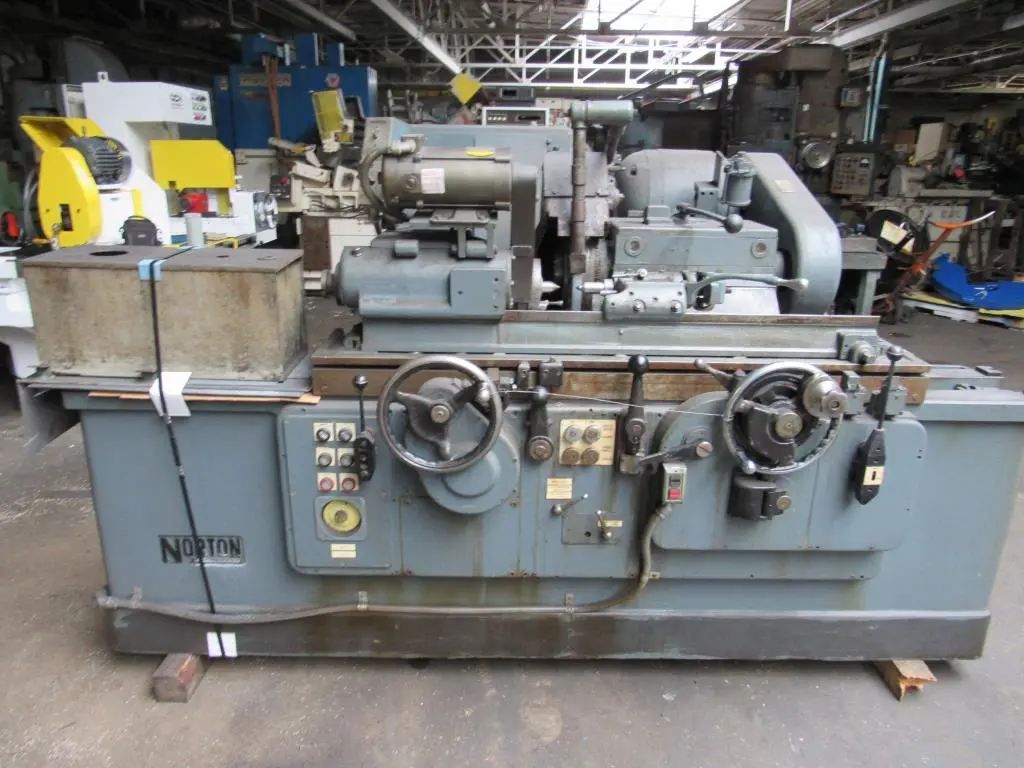

Norton 6X30 CTU Plain Cylindrical Grinder, 6" Swing, 30" Between Centers, 24" x 2" Grinding Wheel
6 x 30 NORTON CTU PLAINCYLINDRICAL GRINDER
S/N 23028 Year:1948
STANDARD CATALOG SPECIFICATIONS
PRIVATE tc� \l 1 Maximum diameter work ground with24\ wheel, 6\ grinding wheelsMaximum diametersand widths.................. 24 x 2 x 12
Coolant tankcapacity......................... 32 gallons
Coolant pumpcapacity......................... 21 gallons
Hydraulic oil reservoircapacity.............. 32 gallons
Lubricating oil reservoircapacity............ 3 gallons
Swivel table adjustment (in. perft. on dia.)
Machinelength................................ 30
Machinetaper................................. 3
MOTORS
Wheel drive..... 7 1/2 HP, 1800 RPM, constant speed AC
Work drive...... 1/2 HP, 1200 RPM, constant speed AC
or 1/2 HP, 690/2760 RPM, adjustable speed DC
Hydraulic and lubricating pumpdrive..... 3/4 HP, 1200 RPM
Constant speed AC
AC Motor speeds are for 60Cycle, for 50 Cycle AC Speeds
will be 1500 and 1000 RPM
TABLE SPEEDS
Range of speeds (in. permin.)................ 2 ‑ 240
Number ofspeeds.............................. Infinite
EQUIPPED WITH
Variable speed head stock.
Lever operated tail stock.
Hand hydraulic tabletravel.
Hydraulics.
Electrics.
Timers.
Coolant in base.
Plunge feed.
Pick feed.
Oscillating spindle.
Attached electrical.
2” Max wide wheel.
Netweight.................................... 6,600 lbs.
