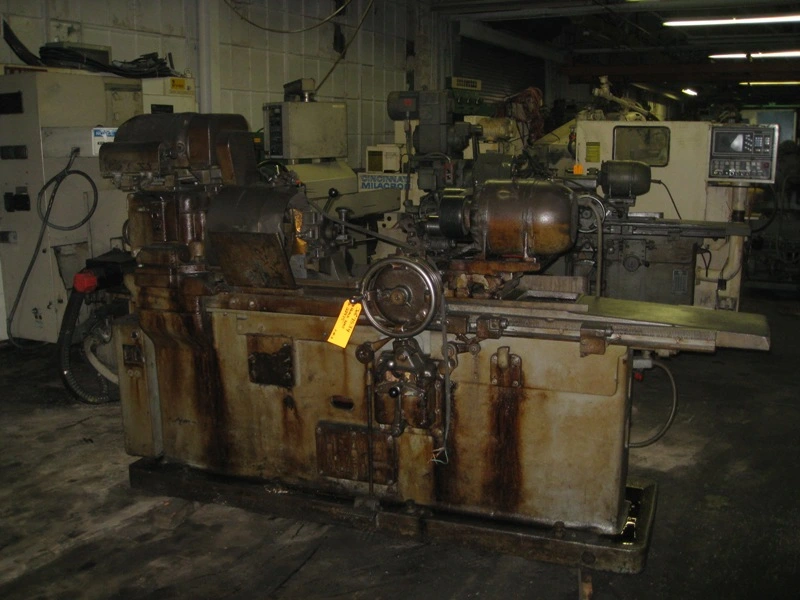

72A-5 HEALD INTERNAL GRINDER

72 A-5 HEALD INTERNAL GRINDER
S/N 22975

STANDARD CATALOG SPECIFICATIONS
Swing diameter over table, maximum................. 18
Grinding stroke............................................... 20 5/8

WORK HEAD
Maximum depends upon wheel head selected.
Max. swivel of ext. bridge from center line......... 8 1/2 degrees
Max. swivel of work head,independent of bridge.... 16 degrees
Center of chuck spindle from floor........................ 50
Diameter of work head spindle flange............... 9 5/8
Hole through work head spindle..................... 1 1/4

SPEEDS FEEDS
Table speeds unlimited between........................... 0 to 32 FPM
Work head speeds adjustable from DC drive.......... 152, 456 RPM
Cross feed hand wheel graduations on dia........... .001
Each ratchet tooth w/coarse guards (std)........... .0002
Power feed adjustment...................................... 1 to 4 teeth

MOTORS
Hydraulic pump motor.......................... AC 2 HP1200 RPM
Work head motor............................... DC 3/4 HP
Wheel head motor.............................. AC 5 HP3600 RPM
Capacity of oil reservoir..................... 24 gallons

EQUIPMENT FEATURES
Manual dresser.
4 Speed work head.
Face stop.
Manual or power cross sliding work head.
Coolant tank pump.
Attached electrical.
