FELLOWS 61A 22191

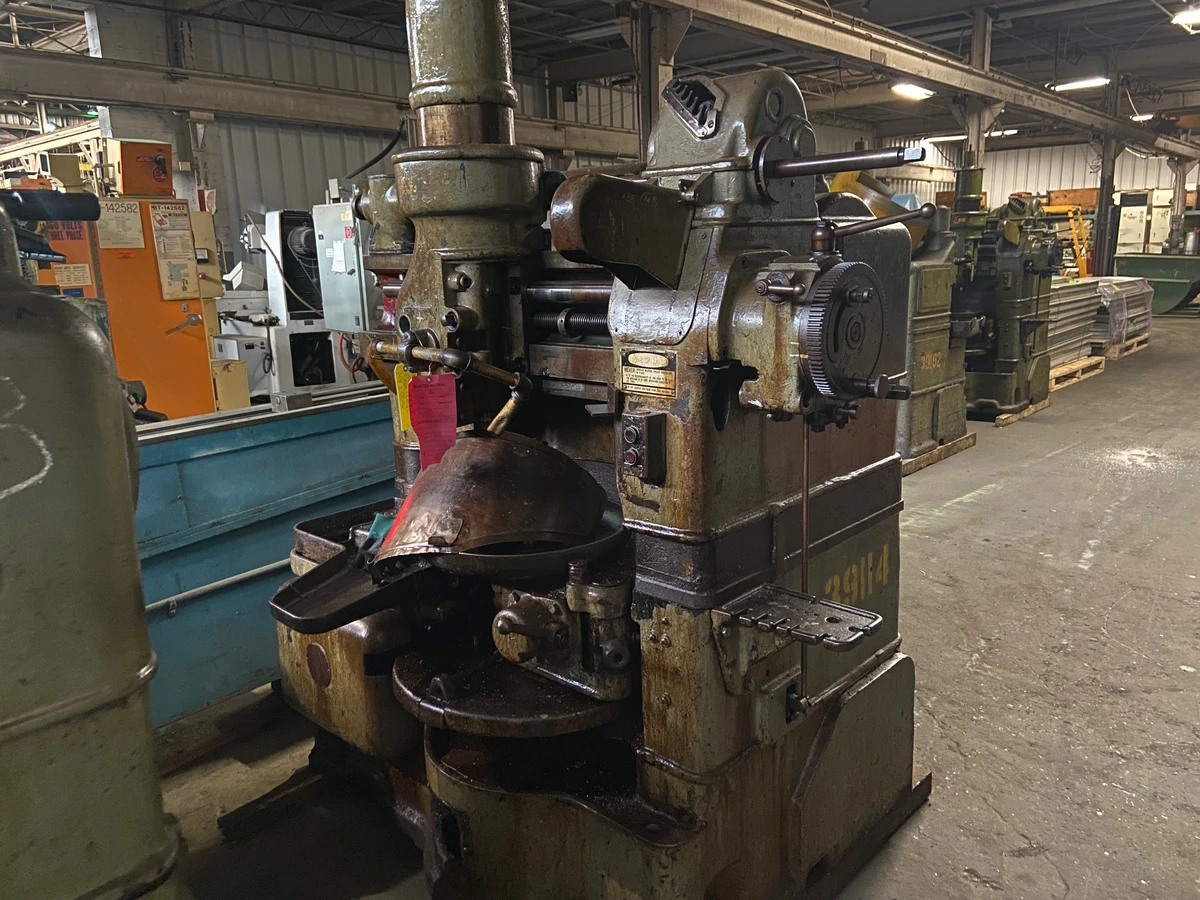

FELLOWS 61A GEAR SHAPER
S/N 22191 Year:1943

STANDARD SPECIFICATIONS
Max External Internal Pitch Diameter…………………………….18”
Max External Face Width…………………………………………… 5”
Max Internal Face Width……………………………………………..5”
Max Spur Diametral Pitch……………………………………………3/4”
Stroke…………………………………………………………………5.12”

DIMENSIONS
Max Overall Length Of Machine……………………………………..5’ 3”
Max Overall Width Of Machine………………………………………4’
Max Overall Height Of Machine (W/ Out Raising Blocks)…………..6’ 5”
Weight…………………………………………………………………6800 lbs.

EQUIPPED WITH
Spur guide.
5” Riser.
Coolant pump.
1 Set-Up of change gears.

Specifications are deemed accurate, however, subject to verification or prior sale.
