Used 1973 LANDIS 2R | GRINDERS, CYLINDRICAL - PLAIN

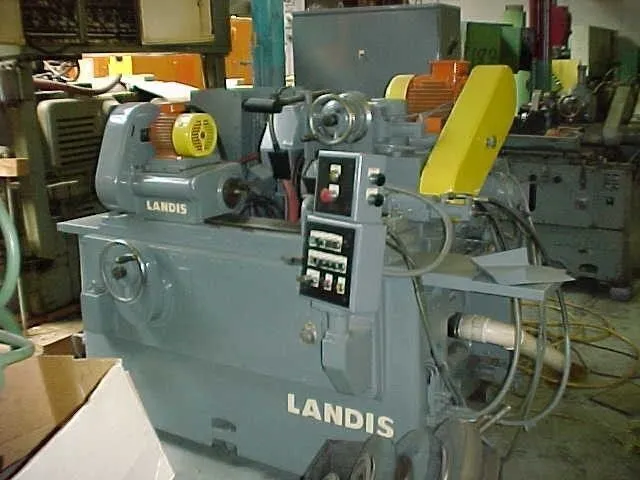

     2R6-18 6" x 18" LANDIS 2R PLAIN CYLINDRICAL GRINDER

                       S/N 200-75   Year: 1973

STANDARD CATALOG SPECIFICATIONS
Nominal work swing ............................... 6"
Nominal distances between work centers ........... 18"
Minimum diameter wheel to grind zero diameter
work on centers .................................. 27"
Hydraulic tank capacity ? gallons ................ 19

WORK CARRIAGE
Traverse speed, per turn of hand wheel:
Slow ................ 0.100"       Fast .......... 1.000"

HEADSTOCK & FOOTSTOCK
Work centers ..................................... #10 Jarno
Foot stock center movement ....................... Lever only
Head stock work speeds RPM
Dead spindle ..................................... 94 ?154?246?400

WHEELHEAD & WHEELFEED
Grinding wheel, size (standard) .................. 24" x 2" x 8"
Grinding wheel, spindle speeds ? RPM ............. 1000/1271 RPM
Grinding wheel, minimum diameter of work
wheel ............................................ 10 1/2"
Automatic infeed at table reversal on diameter
Machine w/hydraulic infeed .................. 0.0002" to 0.004"
Distance wheel centerline to work centerline:
Hydraulic infeed machine ...... Maximum .......... 18"
                                Minimum .......... 7 1/2"
Work diameter reduction per revolution of wheel
feed hand wheel .................................. 0.100"
Work diameter reduction per revolution of fine
knob:
Hydraulic infeed ................................. 0.001"
Maximum hydraulic infeed on diameter for
hydraulic infeed machines ........................ 0.090"
Rapid infeed stroke for hydraulic infeed machine:
Maximum .......................................... 2"
Minimum .......................................... 1/2"

ELECTRIC MOTORS
Wheel drive motor ................................ 10 HP
Wheel spindle lubrication pump motor ............. 1/4 HP
Work drive motor ................................. 1/2 HP
Hydraulic pump and lubrication drive motor ....... 2 HP

GENERAL DATA
Swivel table graduated inches per foot ............ 4 1/2"
Degrees included angle ............................ 20
Height from floor to work centerline .............. 39 3/4"
Net weight ........................................ 6,500 lbs.

EQUIPMENT & FEATURES
Motorized head stock dead center
Hyd. tail stock
Tru-Form Auto Behind Wheel Dresser
Plunge
Work jog
Elect. CRT
  (a) Auto tail stock
  (b) Work jog
  (c) Work auto jog
  (d) Work on-off
  (e) Stone on-off
  (f) Return stone
  (g) Advance stone
  (h) Tail stock in-out
  (i) Gage adv.-retract
  (j) Retract auto-manual
  (k) Dresser start
  (l) Time stop-micro
  (m) Retract micro-feed 1-2
  (n) Auto lube

Specifications are deemed accurate, however, subject to verification or prior sale.
