CINCINNATI #107-4 1M1H5D-59

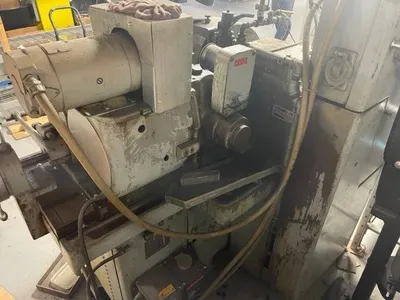

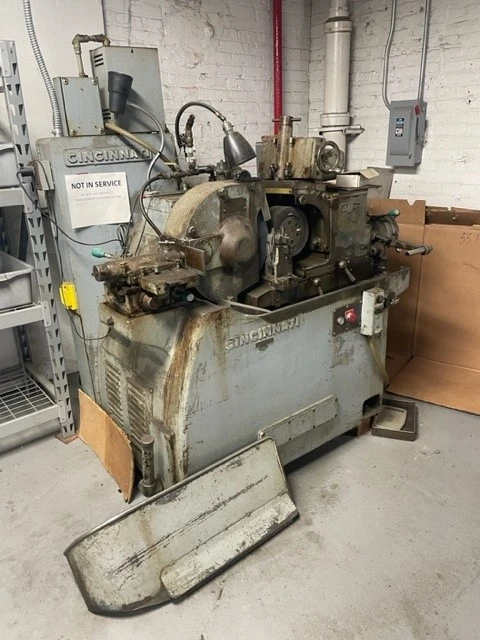

#107-4 CINCINNATICENTERLESS GRINDER

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Infeed workrest.............................. 0 to 1 1/2 dia.
Thru feed workrest........................... 0 to 1 1/2 dia.
(Work rests not included asstandard equipment)

WHEELS (Not supplied)
Grinding wheeldiameter....................... Max: 16, Min: 12
Width.........................................Max: 4
Hole..........................................10 dia.
Regulating wheeldiameter..................... Max: 9, Min: 7
Width.........................................Max: 4
Hole..........................................4 dia.
Recessed bothsides........................... 5 1/2 dia. x 5/8

GRINDING WHEEL SPINDLE
High grade alloy steel, heattreated, ground and super finished.
PRIVATE Filmatic bearings self adjusting for variations inload with plain thrust bearing in center.tc� \l 1 Filmatic bearings self adjustingfor variations in load with plain thrust bearing in center.
Automatic circulating lubrication under pressure.

REGULATING WHEEL SPINDLE
High grade alloy steel, heattreated, ground and super finished.
PRIVATE Two segment bronze lined bearing with anti-frictionball type thrust bearing.tc� \l 1 Two segment bronze lined bearingwith anti-friction ball type thrust bearing.
Automatic lubrication.

REGULATING WHEEL SPEEDS
Number........................................Infinite
Range........... 22 to 300 RPM,high speed used for truing
Changes made by single hand wheel with speedsindicated on tachometer.

GRINDING WHEEL DRIVE
Motor mounted in machinebase................. 7 1/2 HP
Powertransmission............................ 3 V-Belts
Drives grinding wheel only.

REGULATING WHEEL DRIVE
Motor mounted inside machine(upper slide).... 3/4 HP
Drives regulating wheel only.
Powertransmission............................ Wide V-Belt
Speedchanges....................... Variable pitch sheaves

CUTTING FLUID EQUIPMENT (Capacity)
Individual motor driven cuttingfluid pump.... 21 gallons
Cutting fluidtank............................ 40 gallons

WHEEL TRUING EQUIPMENT
PRIVATE Independent truing devices for each wheel mounted on
dovetail slides.tc� \l 1 Independent truing devices foreach wheel mounted on dovetail slides.
Hydraulic contour truing on grinding wheel.
Hydraulic contour truing onregulating wheel.
(Diamonds not included asstandard equipment)

FLOOR SPACE
Standard machine..............................63 x 61 1/8

WEIGHT........................................4,560 lbs.

Specifications are deemed accurate, however, subjectto verification or prior sale.
