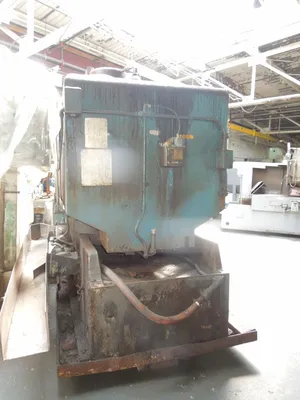

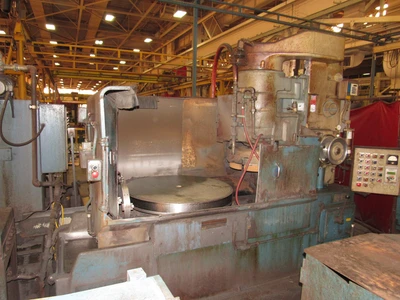

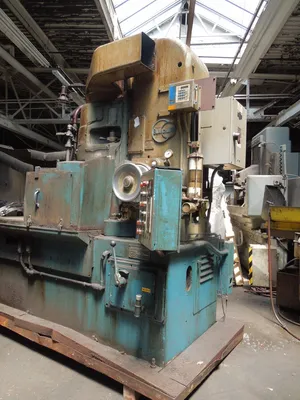

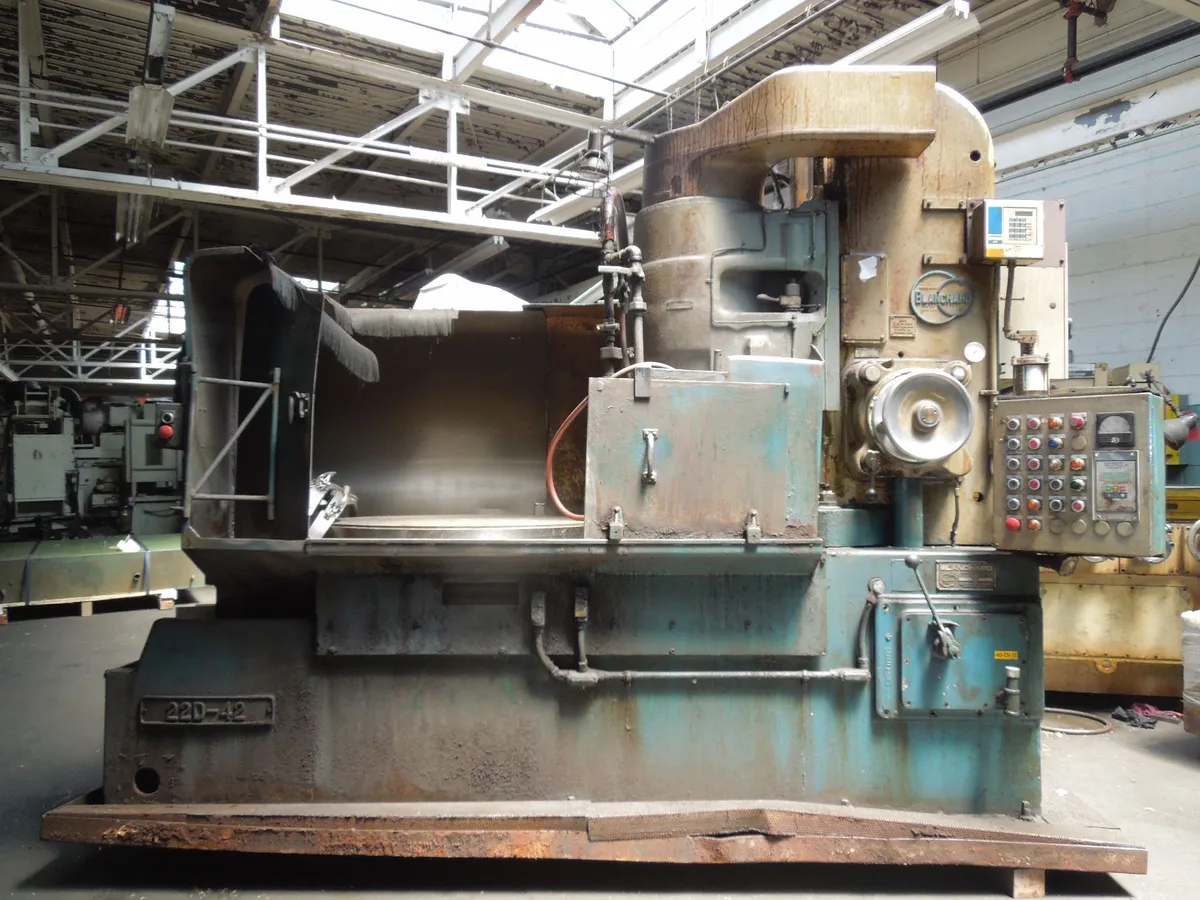

#22D-42 BLANCHARD ROTARY SURFACE GRINDER - 15012

#22D-42 BLANCHARD EXTENDED VERTICAL
ROTARY SURFACE GRINDER
S/N 15012 Year: 1978

STANDARD SPECIFICATIONS

RANGE
48Swing diameter x 22 high over 42 diameter chuck with new segments.

WORKTABLE
One piece 42 diameter magnetic chuck.1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22 Cortland chuck segments, each 11 1/4 x2 1/4 x 6 long.

WHEEL
50H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15,20 and 27 R.P.M. on 50 cycles.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900R.P.M. (60 cycles).
Wet– 125 gallon tank in base.
FLOOR SPACE ANDHEIGHT
11’ 11 X 8’ 4
Maximum height…………………………………………… 9’ 1
Minimum height……………………………………………. 8’ 7

WEIGHT
Domestic shipping weight………………………………….. 19,000pounds

EQUIPMENT ANDFEATURES
42 One piece magnetic chuck 5/8” top plate.
50 H.P. 220/440 volt.
Height wheel to chuck…………………………………….... 24
Wheel dresser.
Load meter.
Guards.
Dry base.
24”Vertical.

Specifications are deemed accurate, however, subject to verification or prior sale.
