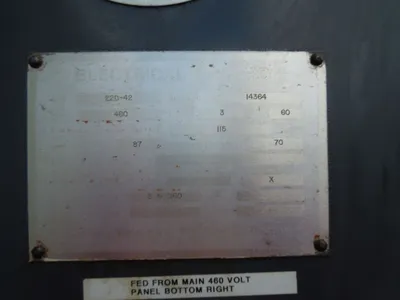

BLANCHARD 22D-42 14364

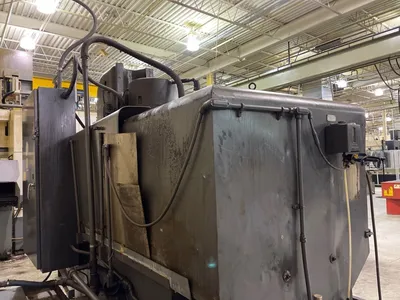

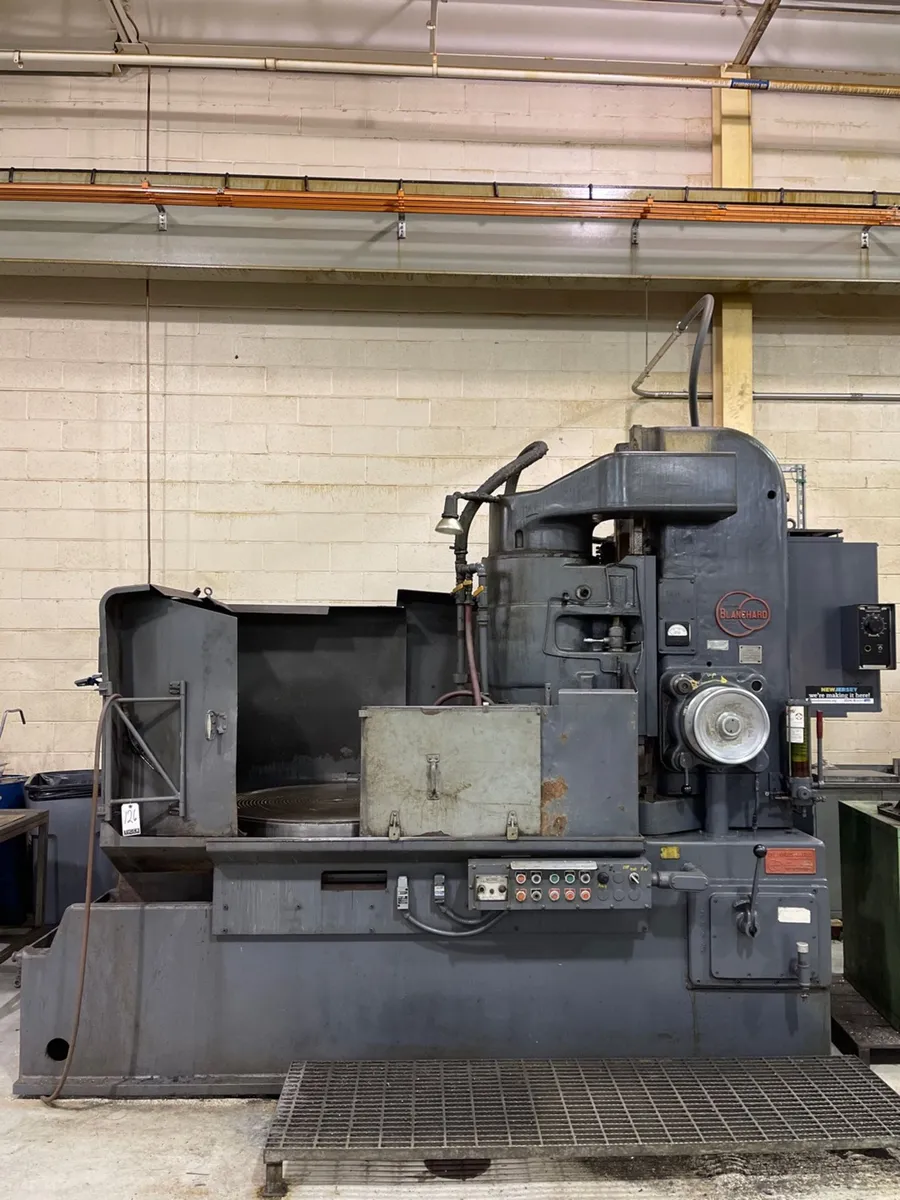

#22D-42 BLANCHARD
ROTARY SURFACE GRINDER

STANDARD SPECIFICATIONS

RANGE
48 Diameter x 22 high over 42 diameter chuck with new segments.

WORKTABLE

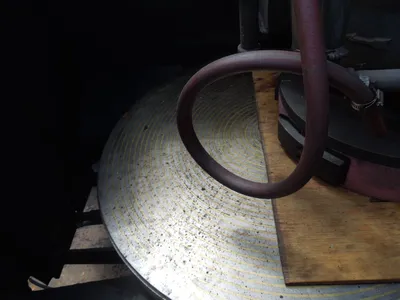

One piece 42 diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22 Cortland chuck segments, each 11 1/4 x 2 1/4 x 6 long.

WHEEL
720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M.
on 50 cycles.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).

FLOOR SPACE AND HEIGHT
11’ 11 X 8’ 4
Maximum height…………………………………………… 9’ 1
Minimum height……………………………………………. 8’ 7

WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds

EQUIPMENT AND FEATURES
42 One piece magnetic
50 H.P.
Height wheel to chuck…………………………………….... 22
Wheel dresser.
Load meter.
Guards.
22” Vertical.

Specifications are deemed accurate, however, subject to verification or prior sale.
