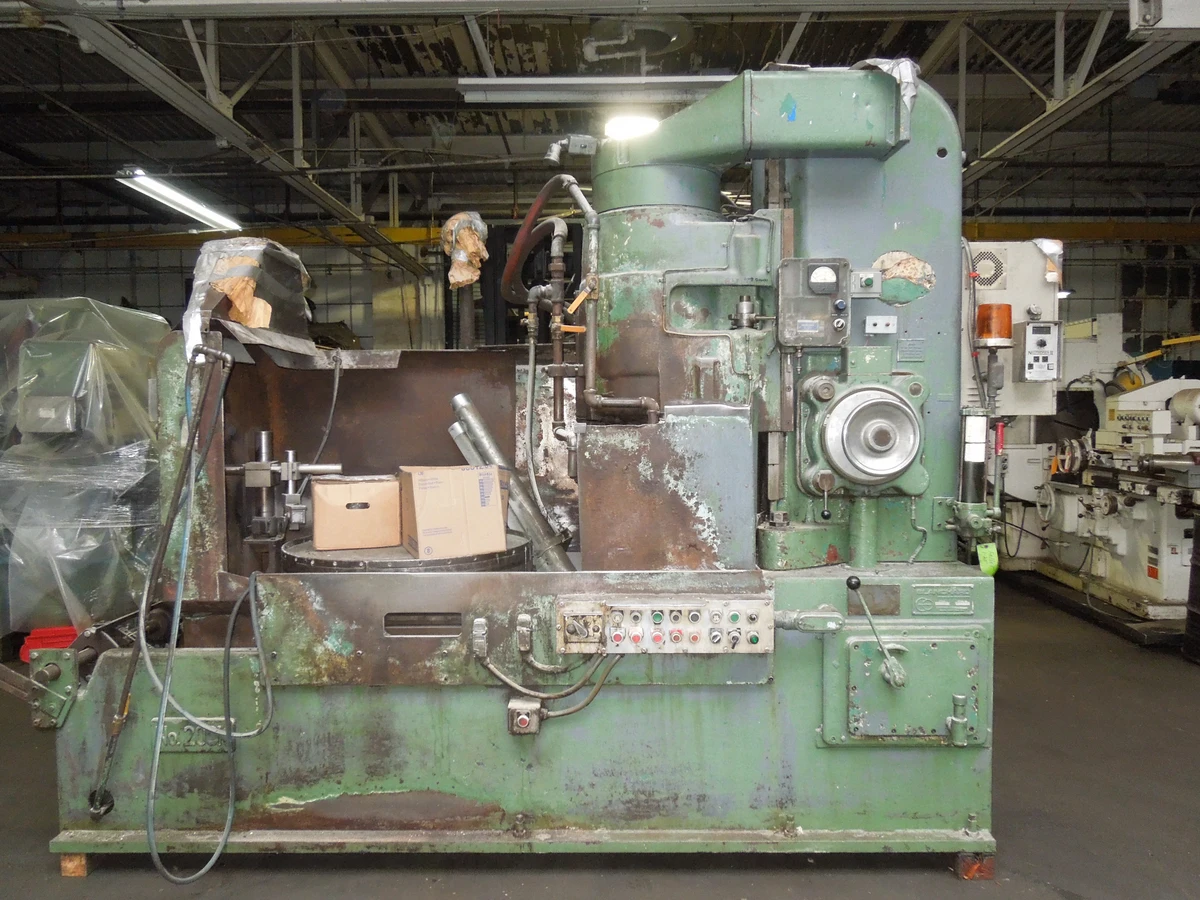

20CK-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

20CK-36 BLANCHARD HIGHPOWERED VERTICAL
ROTARY SURFACE GRINDER
S/N 14138 Year: 1972

RANGE
36diameter x 24 high over 36 chuck with new cylinder wheel.

WORKTABLE
Blanchard one-piece steel magnetic chuck, 36 diameter with5/8 pole spacing. Chuck has 2 center hole and 3/8 – 16tapped holes, 16 holes in 30 chuck and 19 holes in 36chuck.For chuck current see below. Maximum weight of work load, 8,000 lbs.

WHEEL
20x 5 x 15 cylinder or sectored (both wire banded).

SPEEDS
Wheel: 720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck: 6, 9, 12, 18, 25, 33 R.P.M.
(On 50 cycles chuck speeds are 5/6 of these).

FEED
Vertical down feed of wheel by hand or power.
Power feed: On 60 cycles approximately .004to.080, and on 50 cycles approximately
.003 to .066per minute with accurate automatic stop.Maximum distance
of down feed before stop operates is one turn of dial, .100.Wheel head has
rapid power rising and lowering, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1 pipes.

CURRENT FOR MAGNETIC CHUCK
36diameter: 110 volts ,D.C. 7.2amps, 792 watts
220 volts ,D.C. 3.5amps, 792 watts

FLOOR SPACE HEIGHT
Length 9’ 3, width 4’ 11 including control cabinet.
Maximum height 7’ 7, minimum 6’ 9.Height of chuck from floor 35.

WEIGHT
15,000lbs.

EQUIPMENT FEATURES
36 Blanchard one piece steel magnetic chuck.
40 H.P. /37 KW wheel head motor.
Automatic cycle feature.
Coolant and drag out conveyor in base.
Size control caliper.
24” vertical range.
Load meter.
Wheel dresser.
Trabon lubrication.
Water guards.
Freestanding electrical panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
