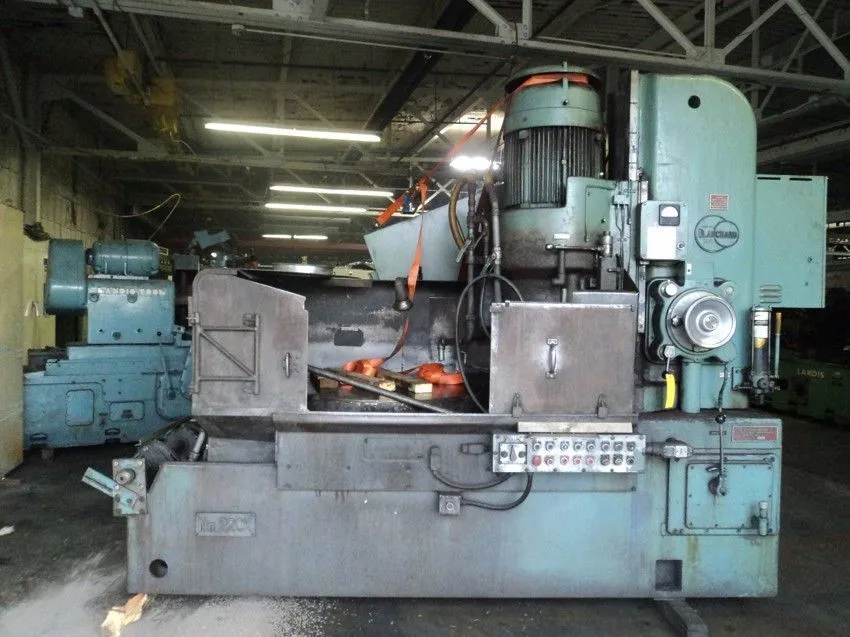

#22CK-42 BLANCHARD EXTENDED VERTICAL WET BASE ROTARY SURFACE GRINDER

#22CK-42 BLANCHARD EXTENDED VERTICAL
WET BASE ROTARY SURFACE GRINDER
S/N 13501 Year:1970

STANDARD SPECIFICATIONS

RANGE
48 Diameter x 24 high over 42 diameter chuck with new segments.

WORKTABLE
One piece 42 diameter magnetic chuck.1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22 Cortland chuck segments, each 11 1/4 x2 1/4 x 6 long.

WHEEL
1480RPM, 50 Hz, 380 Volts.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900R.P.M. (60 cycles).
Wet– 125 gallon tank in base.

FLOOR SPACE ANDHEIGHT
11’ 11 X 8’ 4
Maximum height…………………………………………… 9’ 1
Minimum height……………………………………………. 8’ 7

WEIGHT
Domestic shipping weight………………………………….. 19,000 lbs.

EQUIPMENT ANDFEATURES
42 One piece magnetic chuck.
Wheel dresser.
Load meter.
Guards.
Conveyor in base.
Bijur lube.
5 Segment chuck.
24” Vertical.
22” Segmented chuck.
100 H.P. Geared wheel head, 1480 R.P.M.

Specifications are deemed accurate, however, subject to verification or prior sale.
