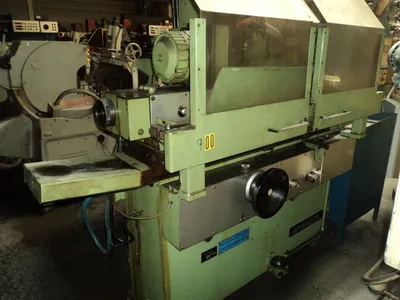

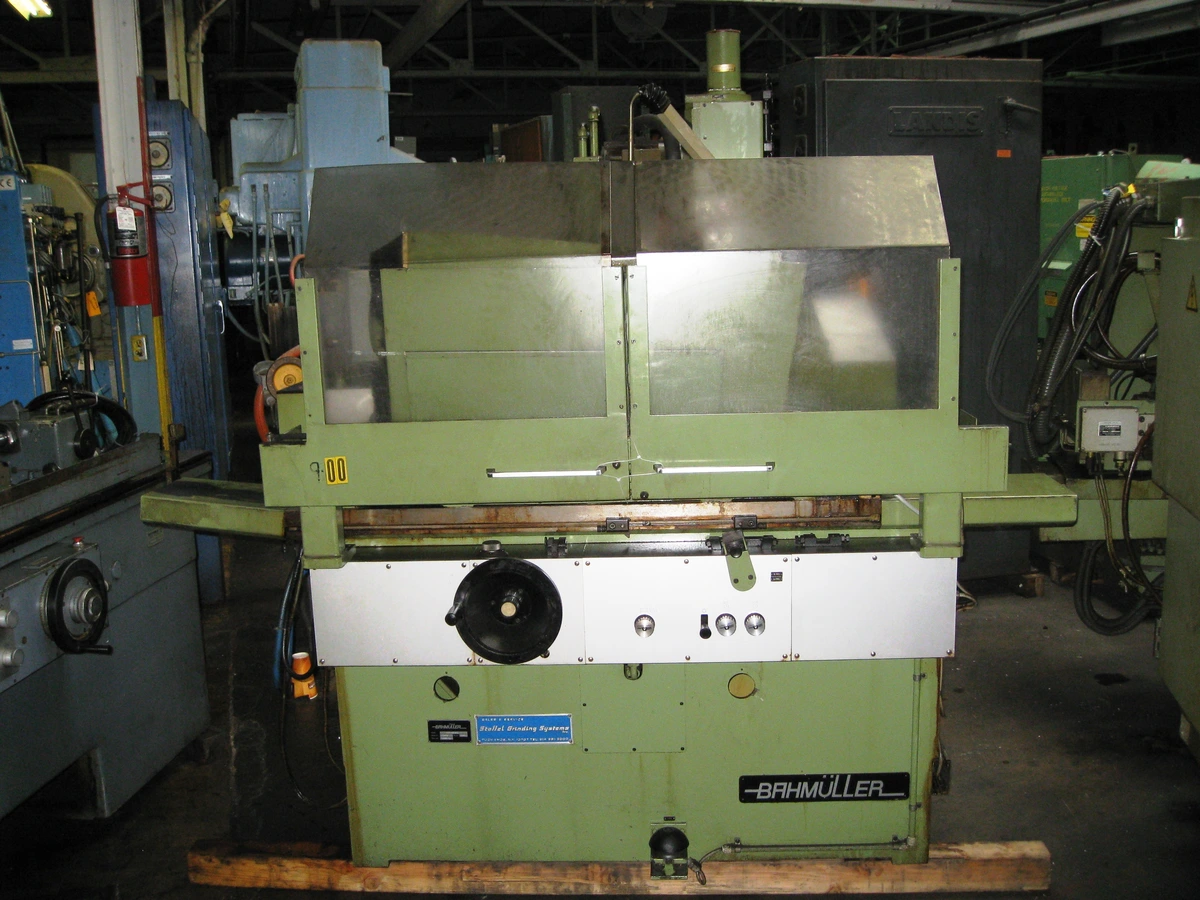

BAHMULLER ASP400 ATE PLAIN CYLINDRICAL GRINDER

BAHMULLER ASP 400 ATE PLAIN CYLINDRICAL GRINDER
S/N 120116 Year: 1986

STANDARD SPECIFICATIONS
Nominal distance between centers…………………………………. 16”
Nominal center height……………………………………………......… 5”
Grinding wheel dimensions………………………………………… 20” x 4.0” x 5”
Wheel head support rapid motion………………………………….. 1.968”
Wheel head support in feed electro-mechanically…………………..0.787”
Grinding wheel diameter……………………………………………19.685”
Grinding wheel width maximum……………………………………3.14” / 3.93”
Maximum peripheral speed………………………………………… 45 m/s
Grinding spindle drive power up to…………………………………10.05 HP

EQUIPMENT FEATURES
Live dead center head stock.
90 Degree swivel on head stock.
Grinding length when longitudinal grinding………………………. 16.0”
Spindle motor………………………………………………………. 7.5 HP
Stand alone electrical panel.
Tail stock dresser.
Above the wheel diamond roll dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
