Used 2003 OKUMA GA-26T | GRINDERS, CYLINDRICAL - ANGLE HEAD CNC

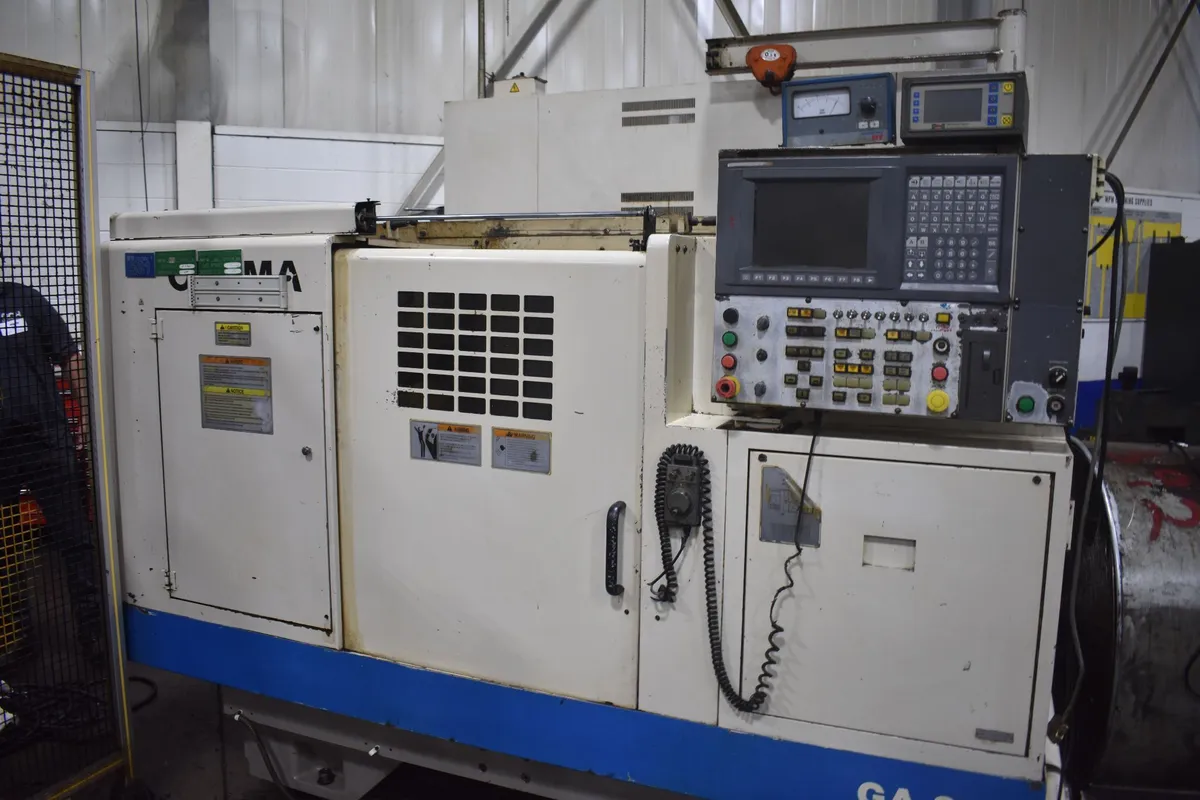

OKUMA GA-26T CNC CYLINDRICAL GRINDER

S/N 104593 YEAR: 2003

Specifications
Max Swing…………………………………………………………….................12.99”
Distance Between Centers………………………………………………………..25.6”
Max Workpiece Weight…………………………………………………………110 LBS
Grinding Wheel…………………………………………………………………..24” Dia. X 2.95” Wide
Spindle Motor…………………………………………………………………….10 HP
Wheel Speed………………………………………………………………………8859 FPM (Peripheral)
X-Axis Travel……………………………………………………………………..12.59”
Z-Axis Travel……………………………………………………………………...25.59”
Center Hole Taper In Work Spindle………………………………………………#4 MT
Center Taper In Tailstock…………………………………………………………#4 MT

Equipped With
SBS balancing system.
Marposs P1 in process gauging.
Jib crane for wheel changing.
Tailstock.

Specifications are deemed accurate, however, subject to verification or prior sale.
